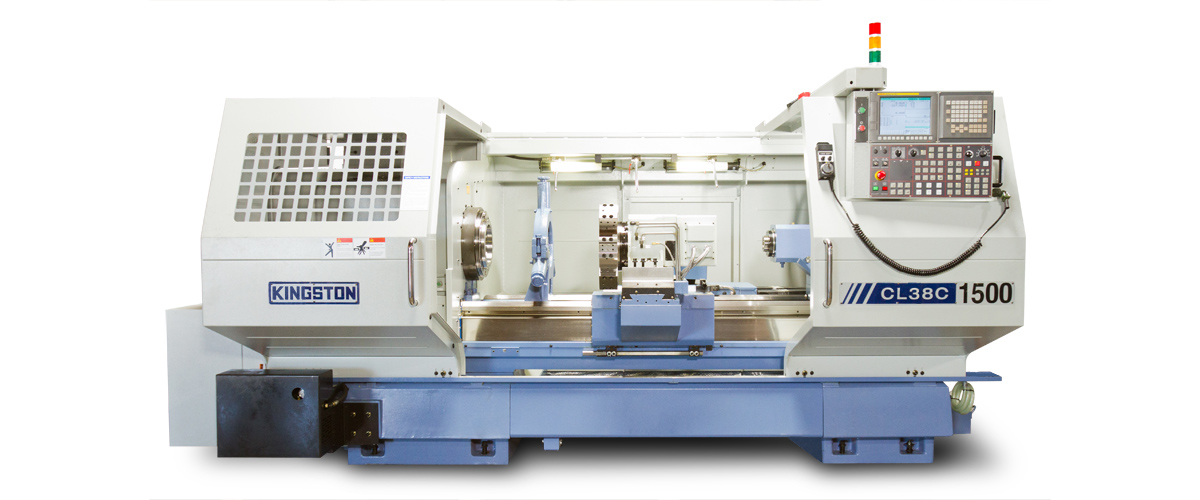

CL38
Dual Turret Performance

Overview

Kingston’s versatile CL-38 model is designed for universal workpieces in a variety of industries including energy, mining, textile, paper, and transportation. The CL-38 features 26” swing, a choice of 4.7” or 7.3” bore, and lengths from 40” – 160". It is equipped with a powerful 30 HP spindle motor, a tailstock featuring a hydraulic quill with built-in live center, and both V8 and H6 servo turrets – with a maximum cutting diameter of 14.5” between turrets. This flexibility and ease of use make the CL-38 one of our most popular CNC models.

Standard Features

  • Bore: 4.7" or 7.3"
  • Swing: 26"
  • C.C.: 40" – 160"
  • 25 HP / 30 HP (30 min)

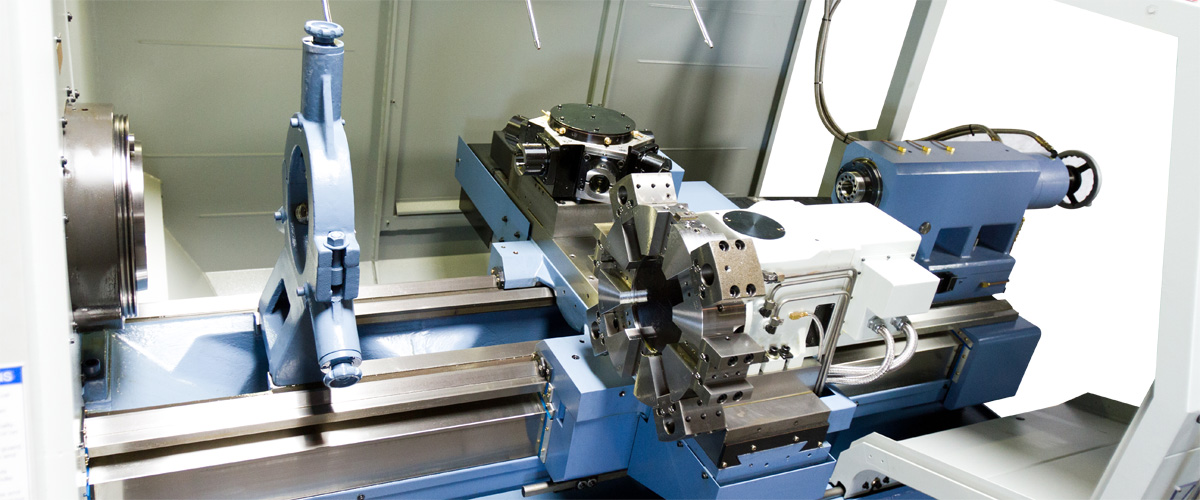

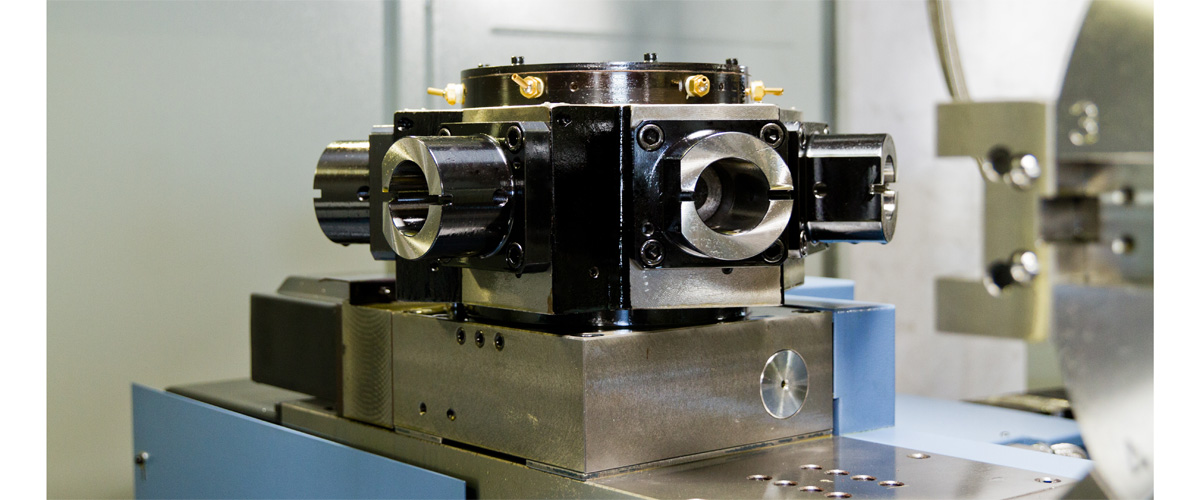

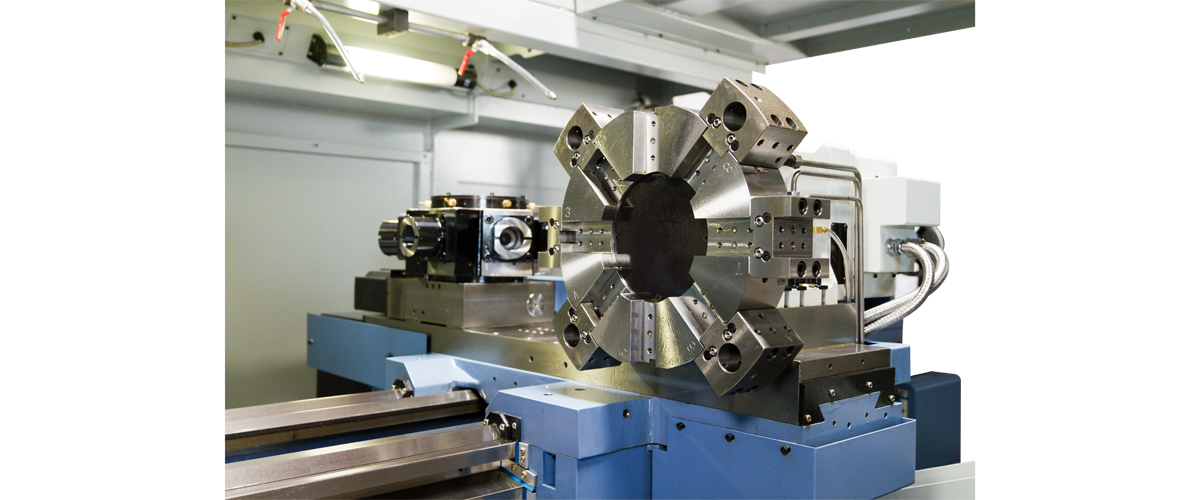

  • V8 Front & H6 Rear Turrets

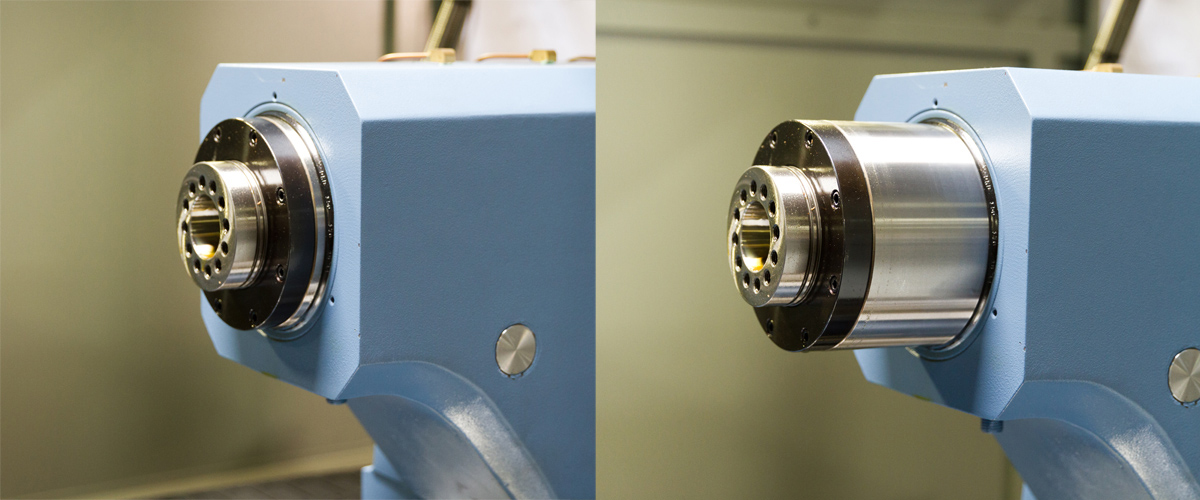

  • Hydraulic & Manual Quill Movement
  • Rear Chip Conveyor

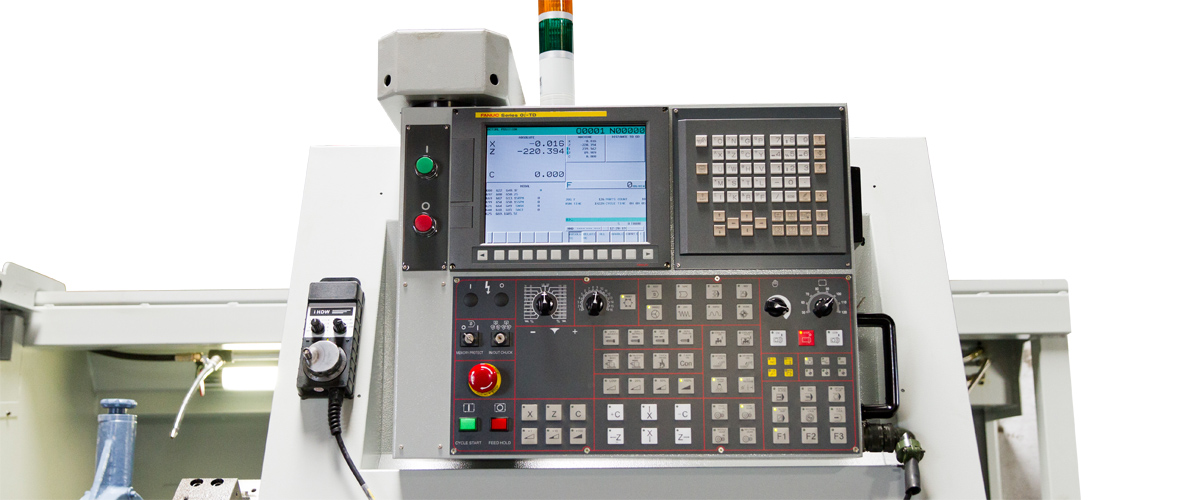

  • Fanuc 0iTF Controller with Manual Guide i, 10.4” LCD Monitor

Optional Accessories

  • Live Tooling Turret
  • Mechanical Indexing Capability for Spindle (72 Positions)

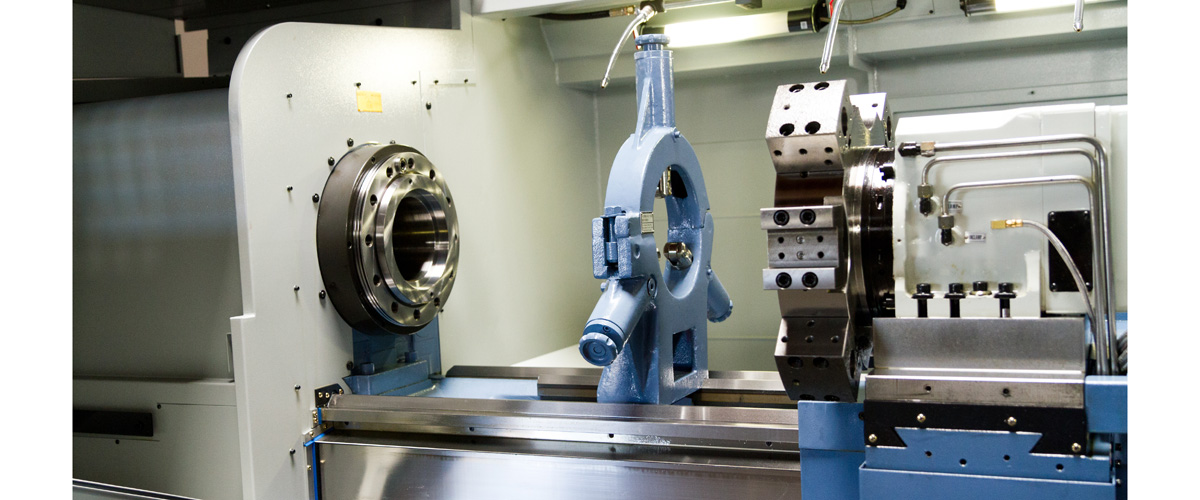

  • 15" Steady Rest
  • Manual Follow Rest
Capacity CL38A CL38C
Swing Over Bed 26” 26”
Max. Cutting Diameter – Chucking 24” 24”
Max. Cutting Diameter – Universal 14.5" 14.5"
Distance Between Centers 40” / 60” / 80” / 120” / 160” 40” / 60” / 80” / 120” / 160”
Width of Bed 18” 18”



Headstock CL38A CL38C
Spindle Bore 4.7" 7.3"
Spindle motor 25 HP / 30 HP (30 min) 25 HP / 30 HP (30 min)
Type of Spindle Nose A2-11 A2-15



Gear Box CL38A  CL38C
Number of Speed Ranges 2
Spindle Speed (RPM) 6 – 1600 3 – 1200



Turret CL38A CL38C
  V8 & H6 Servo (Std) V8 & H6 Servo (Std)



Traverse CL38A CL38C
Max. Stroke X-Axis 21.26” 21.26”
Max. Stroke Z-Axis 37” / 59” / 76” / 120” / 160” 37” / 59” / 76” / 120” / 160”
Rapid Traverse X-Axis 394"/min 394"/min
Rapid Traverse Z-Axis 394"/min 394"/min



Motor CL38A  CL38C
Servo Motor X-Axis 4 HP 4 HP
Servo Motor Z-Axis 5.3 HP 5.3 HP



Ball Screw CL38A CL38C
X-Axis Ø1.41”, P6 Ø1.41”, P6
Z-Axis Ø1.97", P8 (80") / P12 (120") / P16 (160"); Ø2.48", P12 (200")  Ø1.97", P8 (80") / P12 (120") / P16 (160"); Ø2.48", P12 (200")

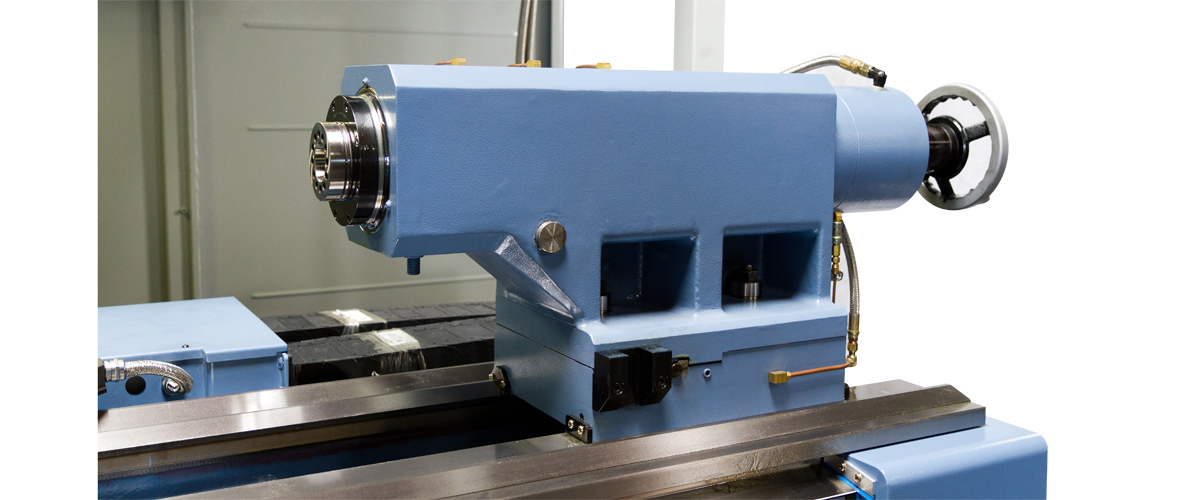

Tailstock CL38A  CL38C
Tailstock Quill Center M.T. #5 M.T. #5
Tailstock Quill Diameter Ø5.9” Ø5.9”
Tailstock Quill Travel 7.9” 7.9”
Machine Height 77” 77”



Dimensions CL38A CL38C
Floor Space (L x W) 203" / 212" / 243" / 286" / 336" x 117" 203" / 212" / 243" / 286" / 336" x 117"



Weight CL38A CL38C
Net Weight (lbs) 14,109 / 14,991 / 16,314 / 18,518 / 22,266 14,109 / 14,991 / 16,314 / 18,518 / 22,266



Total Power Required CL38A  CL38C
  35 KVA 35 KVA
