CL78
59 Swing

Overview

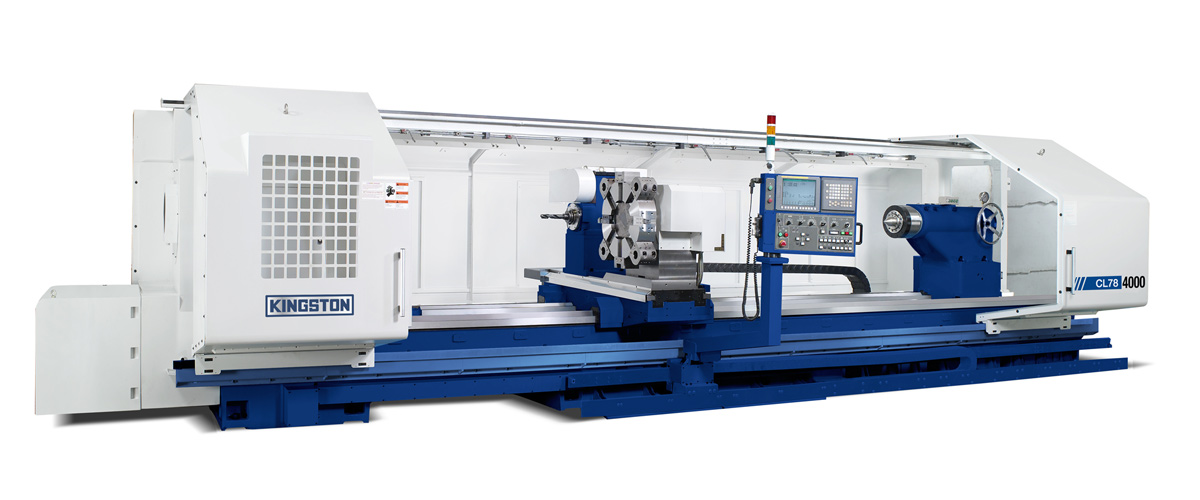

Kingston's CL78 is the largest and brawniest entry in its heavy-duty lineup, boasting an impressive 59" swing (35.4" over cross slide) for your largest work pieces – and a colossal 1-meter (39.4") bed width for maximal stability during the heaviest cutting. Spindle bore sizes up to 14.8" and lengths to 240" between centers – plus a powerful 60 HP motor – mean this machine can tackle just about anything.

Standard Features

  • Bore: 7.1", 10", or 14.8"
  • Swing: 59"
  • Swing Over Cross Slide: 35.4"
  • C.C.: 80" – 240"
  • 50 HP / 60 HP (30 min)
  • 39.4” Bed Width
  • Box Way Cross Slide and Carriage
  • V8 Hydraulic Turret (H6 or H4 Optional)
  • Front & Rear Chuck Ready
  • Center Chip Conveyor (Beneath Bed Way)
  • Tailstock with Built-in Center
  • FANUC 0iTF Controller with Manual Guide i & Threading Repair, 10.4” LCD Monitor

Optional Accessories

  • Additional Rear Turret: H4 (350)
  • Baruffaldi V12 VDI-50 Disc Live Tooling Turret with 2.5 Degree Indexing
  • Steady Rest with Roller Jaw with Two Sleeves (17.7" ~ 25.6", 25.5" ~ 33.5")
  • Roller Bracket (23.62" ~ 33.46", 31.5 ~ 42.13")
  • 7” Boring Bar Support
  • Additional Chip Conveyor
Capacity CL78A CL78B CL78C
Swing Over Bed  59"  59" 59"
Swing Over Cross Slide  35.4" 35.4" 35.4"
Maximum Cutting Diameter  47.2" 47.2" 47.2"
Distance Between Centers  80” / 120” / 160” / 200” / 240” 80” / 120” / 160” / 200” / 240”  80” / 120” / 160” / 200” / 240”
Maximum Cutting Length 79” / 118” / 158” / 197” / 237”  79” / 118” / 158” / 197” / 237”   79” / 118” / 158” / 197” / 237”
Width of Bed  39.4" 39.4" 39.4"



Headstock CL78A CL78B CL78C
Spindle Bore 7.1" 10" 14.5"
Spindle Motor  50 HP / 60 HP (30min) 50 HP / 60 HP (30min)   50 HP / 60 HP (30min)
Type of Spindle Nose  A2-15 A2-15 A2-20



Gear Box CL78A CL78B CL78C
Number of Speed Ranges 2 2 2
Spindle Speed (RPM) 6-650 6-650 4-500



Turret CL78A CL78B CL78C
Turret V8 Hydraulic (Std), H4 or H6 (Opt) V8 Hydraulic (Std), H4 or H6 (Opt) V8 Hydraulic (Std), H4 or H6 (Opt)



Traverse CL78A CL78B CL78C
Max. Stroke X-Axis 28.9"  28.9"  28.9"
Max. Stroke Z-Axis 80” / 120” / 160” / 200” / 240” 80” / 120” / 160” / 200” / 240” 80” / 120” / 160” / 200” / 240”
Rapid Traverse X-Axis 236”/min 236”/min 236”/min
Rapid Travers Z-Axis 236”/min 236”/min 236”/min



Motor CL78A CL78B CL78C
Servo Motor X-Axis 5.3 HP 5.3 HP 5.3 HP
Servo Motor Z-Axis 8 HP 8 HP 8 HP



Ball Screw CL78A CL78B CL78C
X-Axis Ø1.41”, P6 Ø1.41”, P6 Ø1.41”, P6
Z-Axis Ø2.48”, P12 Ø2.48”, P12 Ø2.48”, P12



Tailstock CL78A CL78B CL78C
Tailstock Quill (Nose, Taper, Bearing) A-1-8, M.T. #6, 33024 A-1-8, M.T. #6, 33024 A-1-8, M.T. #6, 33024
Tailstock Quill Diameter Ø9.4” Ø9.4” Ø9.4”
Tailstock Quill Travel 7.1" 7.1" 7.1"



Dimensions CL78A CL78B CL78C
Floor Space (LxW) 305” / 345” / 384” / 423” / 470” x 150” 305” / 345” / 384” / 423” / 470” x 150” 305” / 345” / 384” / 423” / 470” x 150”
Machine Height 91" 91" 91"



Weight CL78A CL78B CL78C
Net Weight (lbs) 31,372 / 35,442 / 39,556 / 43,670 / 47,806 31,372 / 35,442 / 39,556 / 43,670 / 47,806 31,372 / 35,442 / 39,556 / 43,670 / 47,806



Total Power Required CL78A CL78B CL78C
  100 KVA 100 KVA 100 KVA
