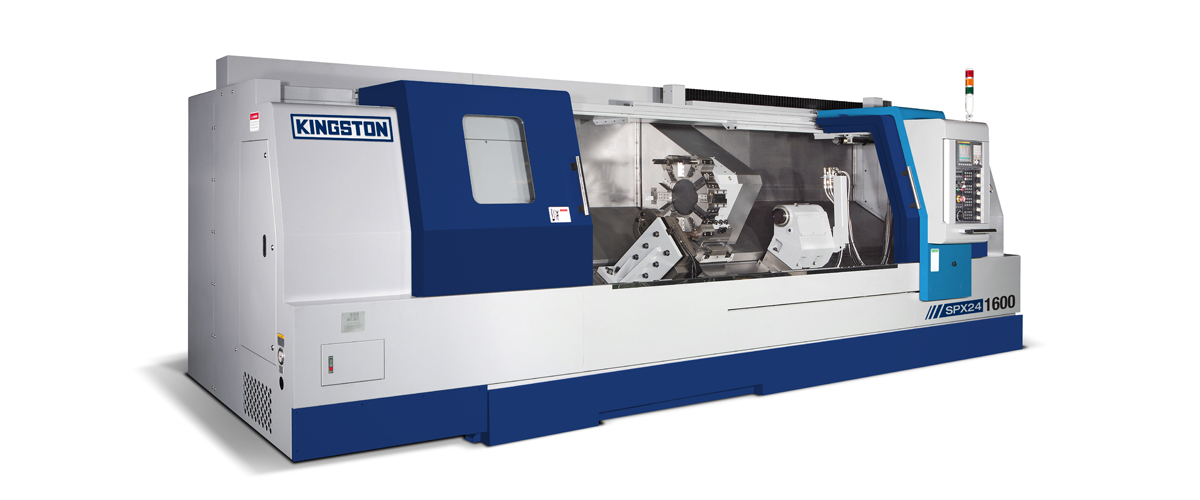

SPX 24
24" Swing Slant Bed
Overview
The SPX-24 model is Kingston’s most compact entry in its slant bed line. With its 25 HP spindle motor, hydraulic V12 turret, 2.9” bar capacity, 24” swing over bed, and lengths from 28” – 120”, the SPX- 24 is an extremely versatile and powerful production machine. The heavily ribbed one-piece bed and box way casting is made of a fine-grain Meehanite that is heat treated, annealed twice and ground to attain the stability and hardness of HRC53. Each sliding surface is further coated with Turcite-B for optimal performance even under your heaviest loading and cutting conditions. Useful optional accessories to customize your SPX-24 include: C-Axis and live tooling capability, bar feeder interface, 50 HP spindle motor, 20-bar hi-pressure coolant system, and bar capacity upgrades to 4.13”.
Standard Features
- Bar Capacity: 2.9"
- Swing: 24.0"
- C.C.: 28” – 120"
- 20 HP / 25 HP (30 min) AC Spindle Motor (Fanuc), 220V, 3 Phase 60 Cycle
- 10” 3-Jaw Hydraulic Cylinder & Chuck
- Fanuc 0iTF Controller w/ Manual Guide & Thread Repair, 10.4" LCD Monitor
- Registered Part Program Number: 400 Sets
- V12 Hydraulic Turret
- Fully Programmable Tailstock Body & Quill
- Chain Type Chip Conveyor + Chip Cart
- Pocketed Headstock Wall Accommodates Long Boring Bars
Optional Accessories
- C-Axis w/ Controller Upgrade + Live Tooling Turret
- Rotary Tool Holders
- 3.54" Bar Capacity Upgrade (12" Hydraulic Chuck)
- 4.13" Bar Capacity Upgrade (15" Hydraulic Chuck)
- 40 HP / 50 HP (30 min) Spindle Motor Upgrade
- V12 Servo Turret Upgrade
- Hydraulic Steady Rest
- Renishaw Tool Setters
- Oil Mist Collector
- Oil Coolant Skimmer
- Bar Feeder Interface
| Capacity | 28" | 48" | 66" | 86" | 120" |
| Swing Over Bed | 24.0" | 24.0” | 24.0" | 24.0" | 24.0" |
| Swing Over Saddle | 15.2" | 15.2" | 15.2" | 15.2" | 15.2" |
| Max Cutting Diameter | 19.6” | 19.6” | 19.6” | 19.6” | 19.6” |
| Max Turning Length | 27.5" | 47.2" | 64.5" | 86.6" | 118.1" |
| Bed | 28" | 48" | 66" | 86" | 120" |
| Slant Angle | 30 deg. | 30 deg. | 30 deg. | 30 deg. | 30 deg. |
| Guide Way | Box Way | Box Way | Box Way | Box Way | Box Way |
| Headstock | 28" | 48" | 66" | 86" | 120" |
| Bar Capacity | 2.9" | 2.9" | 2.9" | 2.9" | 2.9" |
| Spindle Nose | A2-8 | A2-8 | A2-8 | A2-8 | A2-8 |
| Power Chuck Diameter | 10" | 10" | 10" | 10" | 10" |
| Max Spindle Speed | 3500 RPM | 3500 RPM | 3500 RPM | 3500 RPM | 3500 RPM |
| Spindle Motor | 20 HP / 25 HP (30 min) | 20 HP / 25 HP (30 min) | 20 HP / 25 HP (30 min) | 20 HP / 25 HP (30 min) | 20 HP / 25 HP (30 min) |
| Turret | 28" | 48" | 66" | 86" | 120" |
| Turret Driven Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Number of Tools | 12 Station | 12 Station | 12 Station | 12 Station | 12 Station |
| Square Tool Size | 1" | 1" | 1" | 1" | 1" |
| Round Tool Shank Size | 1.5" | 1.5" | 1.5" | 1.5" | 1.5" |
| Travels | 28" | 48" | 66" | 86" | 120" |
| X-Axis | 9.8" + 1.9" | 19.8" + 1.9" | 9.8" + 1.9" | 9.8" + 1.9" | 9.8" + 1.9" |
| Z-Axis | 29.5" | 49.2" | 66.9" | 88.5" | 122.0" |
| Rapid Traverse: X-Axis | 787 IPM | 787 IPM | 787 IPM | 787 IPM | 787 IPM |
| Rapid Traverse: Z-Axis | 945 IPM | 945 IPM | 945 IPM | 590 IPM | 393 IPM |
| Tailstock | 28" | 48" | 66" | 86" | 120" |
| Tailstock Body Travel | 21.2" | 40.9" | 62.9" | 80.3" | 111.8" |
| Quill Taper | MT#5 | MT#5 | MT#5 | MT#5 | MT#5 |
| Quill Diameter | 3.3" | 3.3” | 3.3” | 3.3” | 3.3” |
| Quill Stroke | 4.7” | 4.7” | 4.7” | 4.7” | 4.7” |
| Dimensions | 28" | 48" | 66" | 86" | 120" |
| Floor Space (L x W) | 118" x 71" | 142" x 71" | 177" x 71" | 200" x 71" | 256" x 71" |
| Height | 71" | 71" | 71" | 71" | 71" |
| Weight | 12,125 lbs | 13,228 lbs | 16,530 lbs | 19,836 lbs | 26,448 lbs |
| Total Power Required | 28" | 48" | 66" | 86" | 120" |
| 30 KVA | 30 KVA | 30 KVA | 30 KVA | 30 KVA |
